Therapia Magnetica Series
TERAPIA magnetica Body Pain Relief System
MS-35 PRO
TERAPIA magnetica Body Pain Relief System
Theory
According to the principle of Faraday electromagnetic induction, a large amount of energy is quickly discharged from large-capacity storage capacitors to the coil. The coil is stimulated by strong current to produce pulse magnetic field, it can penetrate clothing, bones and other tissues, generate inductive electric fields in stimulating parts, causing excitement/suppression activities of nerve cells, and then generate a series of physiological biochemical reactions.
Magneto Therapy pulses a magnetic field into the body, creating an extraordinary healing effect. The results are less pain, reduction in swelling, and increased range of motion in the affected areas.

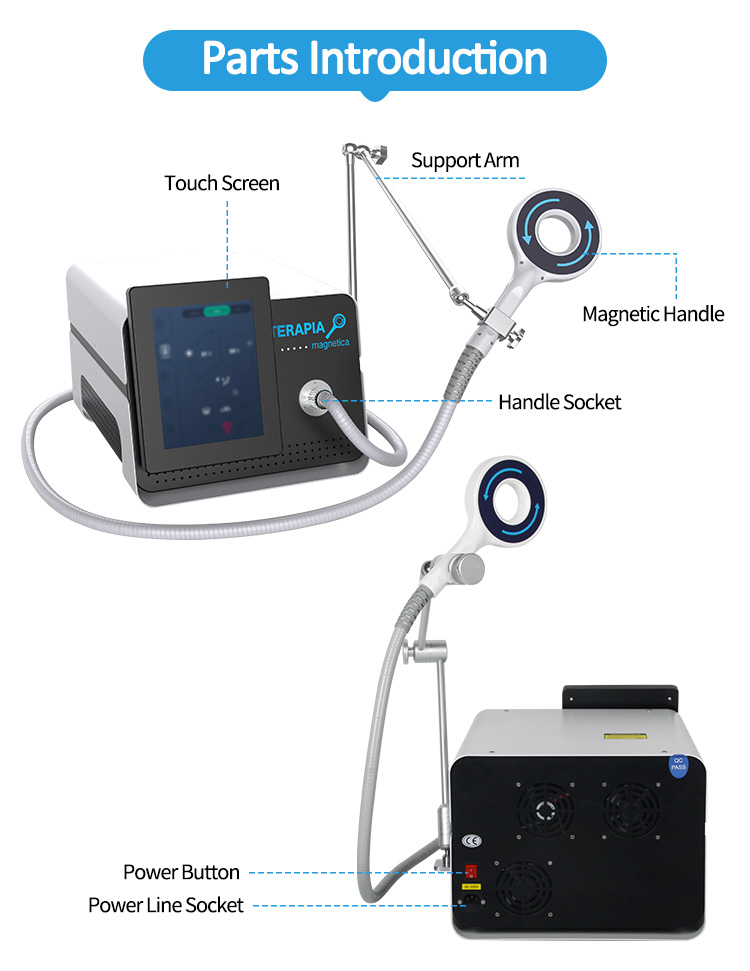

Parts Introduction
Application
(1) Muscle pathology (contracture, muscle tears, bruises and swelling).
(2) Bone injuries, osteoarticular distractions and wear of the joints (shoulder, hips, knees, ankle joints).
(3) Pathology of the elbow, wrist and arms (epicondylitis, tendinitis, carpal tunnel syndrome).
(4) Thoracic vertebral pathology.
(5) Inflammation and damage to the Achilles tendon and ligament.
(6) Tendonitis in the shoulder joint area and chronic edema.
Parameters
Magnetic Induction Intensity | 6T |
Frequency | 0.01Hz ~ 100Hz |
Pulse Continuous Time | ≥340μs (±20μs) |
Magnetic Induction Intensity Maximum Change Rate | ≥40kT/s ~ 80kT/s |
Cooling System | Air Cooling |
Package Size | 66cm*58cm*43cm(aluminum box) |
G. W. | 28KGS |
Voltage | AC 110V/220V; 50-60Hz |
Operation
Q & A
(1) Is there any radiation damage from magnetic stimulation?
No. People confuse ionizing radiation with electromagnetic radiation. X-rays, CT, etc. produce ionizing radiation, which can cause harm to living beings; and electromagnetic radiation is everywhere, such as mobile phones, microwave ovens, induction cookers, TVs, microphones, etc. Magnetic stimulators generate electromagnetic radiation just like mobile TVs, so they will not cause radiation damage. Therefore, you can accept the treatment with no worry.
(2) Why is there noise during treatment?
The noise generated during treatment is caused by the expansion and impact of the wires in the coil when the power is turned on, which is unavoidable.
(3) How is the cooling system?
Excellent. After continuous improvement, the magnetic stimulator has been able to work continuously at room temperature of 26°C.
