Fractional CO2 laser Machine

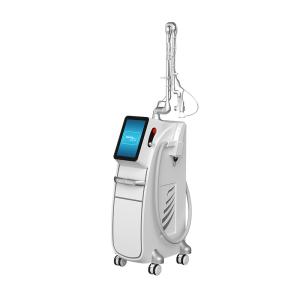

Fast Private Vaginal Tightening Skin Rejuvenation Fractional CO2 Laser Equipment 1064nm ND YAG Laser Tattoo Removal Beauty Machine
BG268
Power ≤1500W
Display screen 12.1inch touch screen
Cooling system Inside-circle coolant
CO2 Laser Working mode Pulse
Output power 1-60W (adjustable)
Laser wavelength 10.6μm
Divergence angle 4mrad
Focused spot diameter ≤0.4mm
Tool bit focus F=100mm (optional)
Pulse width 0.1ms-10ms
Aiming beam Red diode laser (650nm, 2mW)
Transmission system 7 joint arms
Preheating-time ＞5min
Q-Switch Wavelength 1064nm; 1024nm; 755nm; 532nm
Output Power 100 - 2500mJ
Spot Size 3mm
Frequency 1-10Hz
Working environment temperature 5-40℃
Air pressure / Humidity 86Kpa-106 Kpa /＜80%
Electromagnet No electromagnet interrupt
other working environment No obvious shaking or airflow
N. W./G. W. 50kgs/70kgs
Package Size 115cm×54cm×54cm; 69cm×22cm×10cm (Laser Arm)
Fast Private Vaginal Tightening Skin Rejuvenation Fractional CO2 Laser Equipment 1064nm ND YAG Laser Tattoo Removal Beauty Machine
Parameter for this machine
Power | ≤1500W | |
Display screen | 12.1inch touch screen | |
Cooling system | Inside-circle coolant | |
CO2 Laser | Working mode | Pulse |
Output power | 1-60W (adjustable) | |
Laser wavelength | 10.6μm | |
Divergence angle | 4mrad | |
Focused spot diameter | ≤0.4mm | |
Tool bit focus | F=100mm (optional) | |
Pulse width | 0.1ms-10ms | |
Aiming beam | Red diode laser (650nm, 2mW) | |
Transmission system | 7 joint arms | |
Preheating-time | ＞5min | |
Q-Switch | Wavelength | 1064nm; 1024nm; 755nm; 532nm |
Output Power | 100 - 2500mJ | |
Spot Size | 3mm | |
Frequency | 1-10Hz | |
Working environment temperature | 5-40℃ | |
Air pressure / Humidity | 86Kpa-106 Kpa /＜80% | |
Electromagnet | No electromagnet interrupt | |
other working environment | No obvious shaking or airflow | |
N. W./G. W. | 50kgs/70kgs | |
Package Size | 115cm×54cm×54cm; 69cm×22cm×10cm (Laser Arm) | |
Working principle
(1) CO2 Laser
The wavelength of CO2 laser is 10.6μm, which can be fully absorbed by human biology tissue (all the skin is available). The sealed-off fractional CO2 laser, whose output laser-light will be transferred by articulated arm, which has a better sense of direction and higher energy density.
The CO2 laser operates in the invisible infrared waveband, and an aiming beam is required to see where the treatment beam will impact tissue more recently from a visible red diode laser. When the laser beam goes through the focus lens, the produced heat will gasify the target tissue.
With fractional laser resurfacing the laser beam is broken up or fractionated into many small micro beams which are separated so that when they strike the skin surface small areas of the skin between the beams are not hit by the laser and left intact. These small areas of untreated skin promote a much more rapid recovery and healing with less risk of complications. The small areas treated by the fractional micro beams, called micro treatment zones, cause sufficient laser injury to promote new collagen production and resultant facial skin rejuvenation.
Intimate Laser is a non-invasive laser pelvic floor repair technology without surgery. Using the micro-pulse stimulation effect of CO2 laser, it increases cell oxidation and nutrients, and many fibroblasts synthesise and secrete into collagen fibres, elastin fibres, reticular fibres and organic matrix, to make the vaginal wall thickened and the vagina tightened, and to activate women's own repairing ability.
(2) Q-Switch
Adopting Q-mode, the laser instantly emits high energy to effectively break down pigments in the lesion tissue. That is, the principle of light burst: the high energy gathered by the laser is emitted instantly, which makes the fixed wavelength laser penetrate the epidermis in a very short time (only 6nm) to reach the diseased tissues instantly, and quickly smash the corresponding pigment, and the corresponding pigment group expands extremely fast by heat, and instantly bursts and breaks up, and a part of the (superficial epidermis) pigment group pops out of the body in succession, and a part of the (tissue-based) pigment group breaks up into the fine particles which can be phagocytosed by the macrophage in the body, and is digested by the macrophage, and finally discharged out of the body through the circulation of the lymphatic system. After being digested by macrophages, the pigment will be discharged out of the body through the lymphatic system of the human body, and the pigment of the diseased tissues will gradually become lighter until it disappears, while the surrounding normal skin tissues will not form any damage due to non-absorption of the fixed wavelength laser.

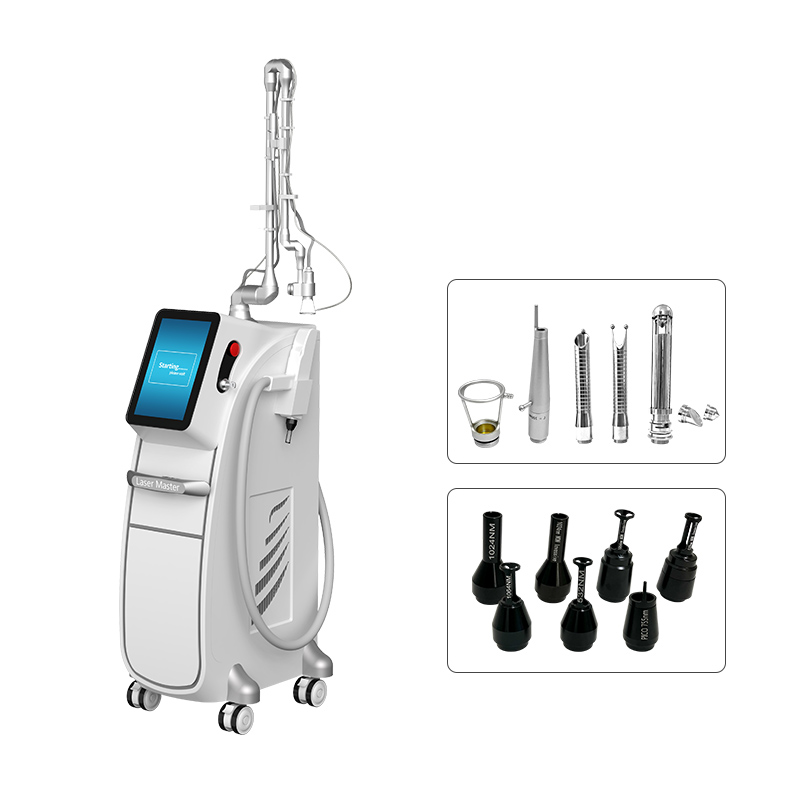

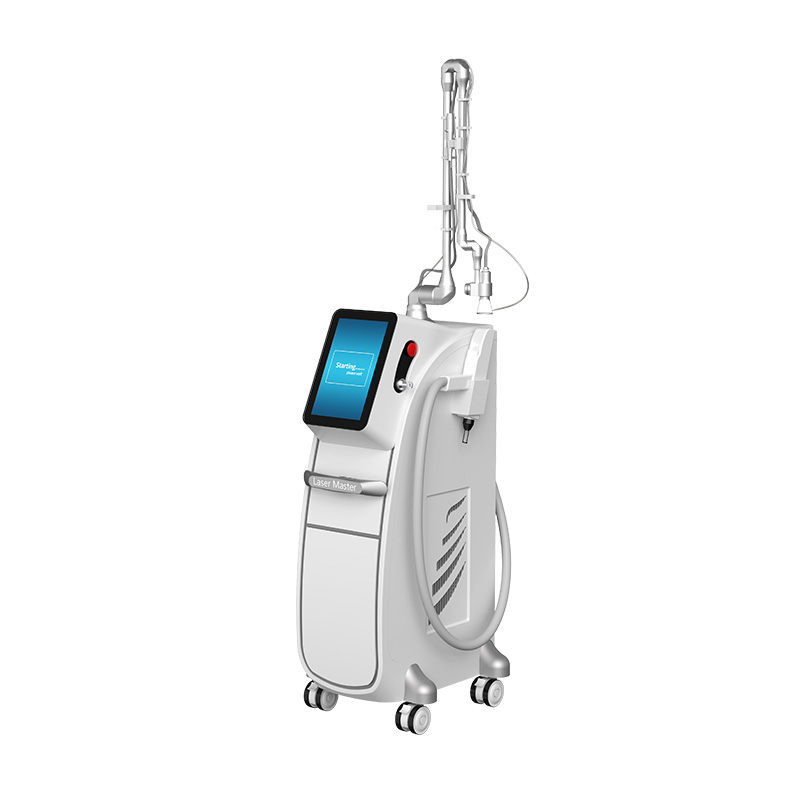

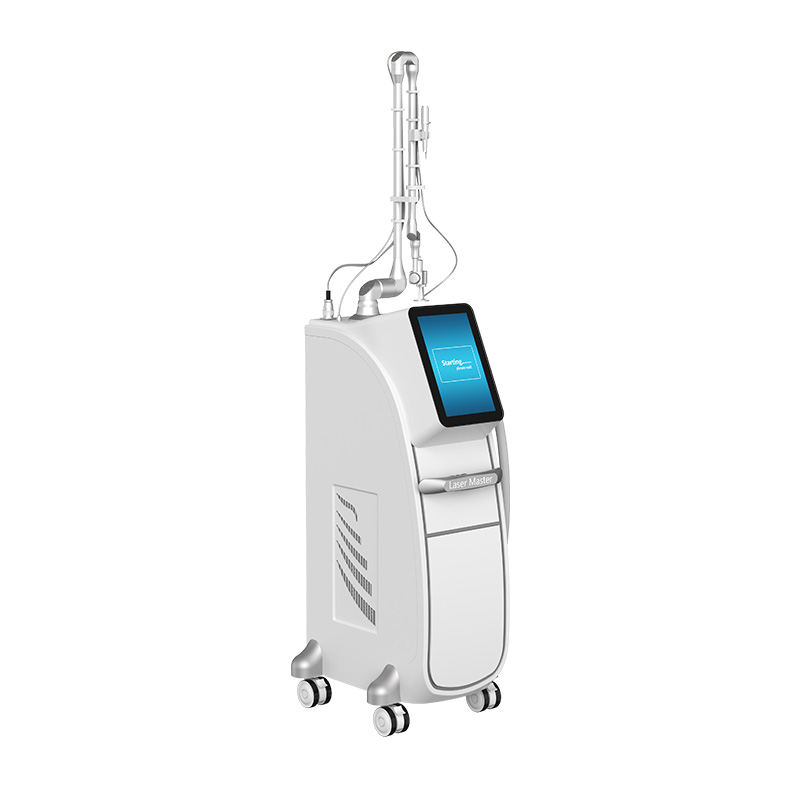

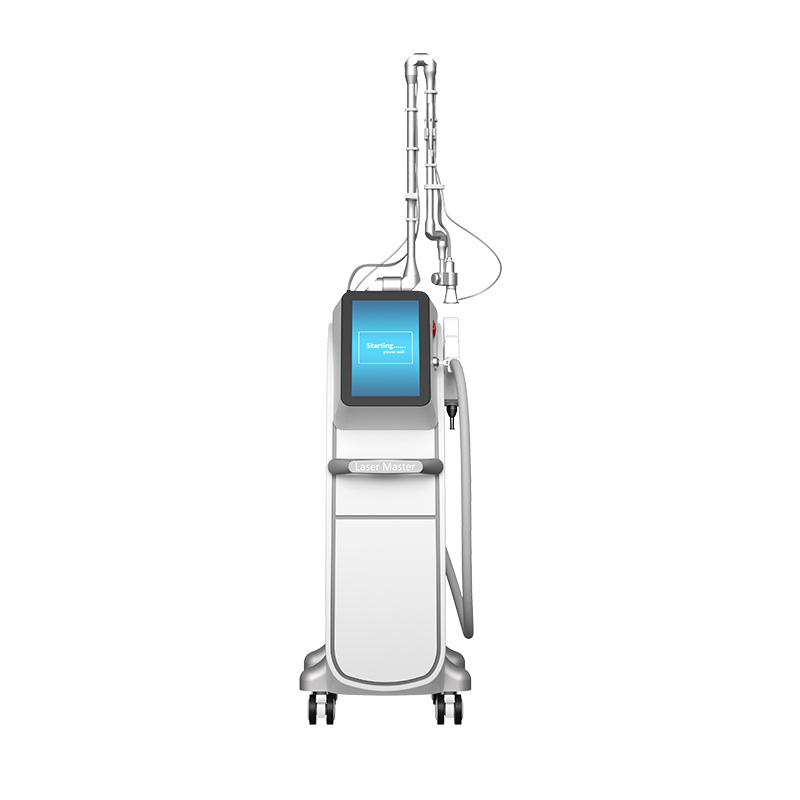

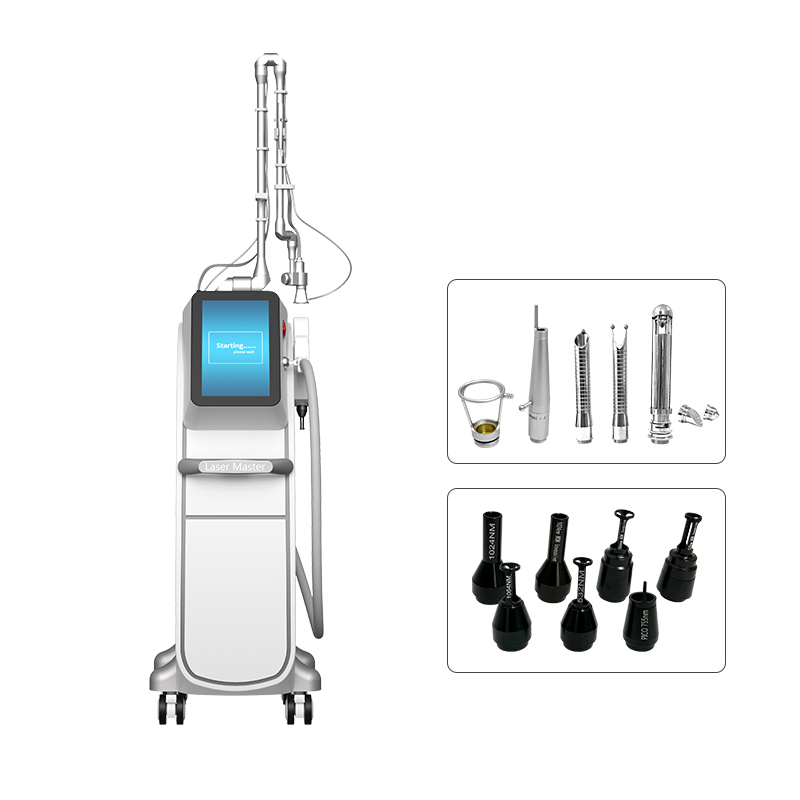

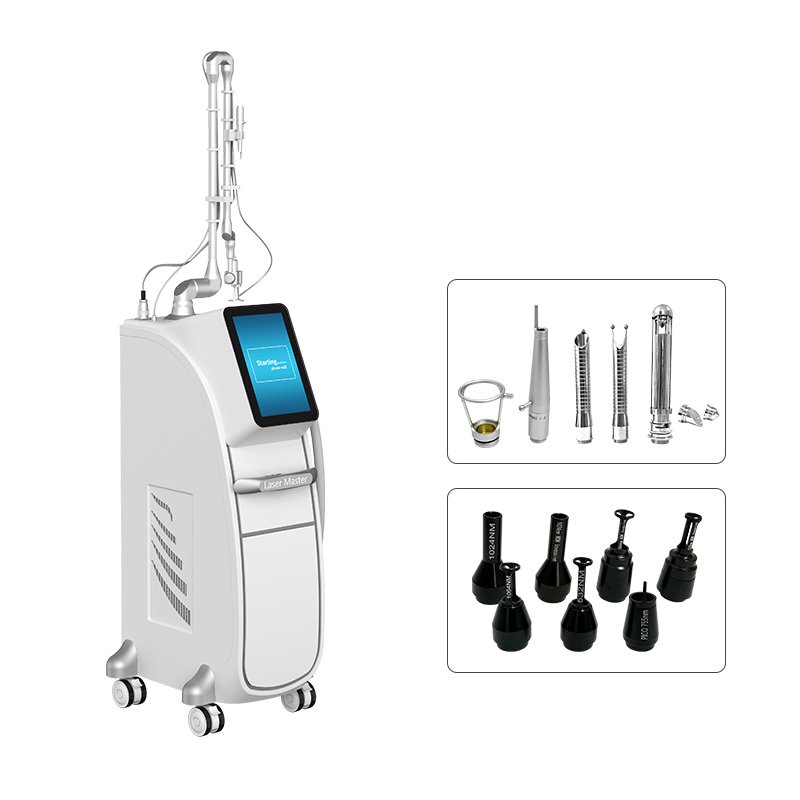

Detail Photos
Application
(1) CO2 Laser
Remove acne and acne marks.
Eliminate dry pattern, fishtail, etc. around the eyes.
anti-aging: skin firming, wrinkle removal, improve the skin condition.
Treatment of pigmented lesions such as freckles and zygomatic mother spots.
Scar: treatment of depressed, old dispersion, convex vascular / fibrous scar.
Stretch marks.
Improves tissue tone and tightness in the labia externa and inside the vagina, tightens the skin and tissues, improves the tone, softness and moistness of the tissues.
(2) Q-Switch
Effectively treats exogenous hyperpigmentation and endogenous pigmented lesions formed by mixing color pigments.
Remove black, blue, brown and red pigments.
Suitable for treating eyebrows and lip lines.
Tattoo Removal: Removes black, blue, brown and red tattoo pigments from eyebrows, eyeliner, lip lines and other parts of the body.
Eliminates age spots, blemishes, birthmarks and pigment changes.
