Picosecond Laser Machine

Dual Function Laser Skin Rejuvenation Machine
Dual Function Laser Skin Rejuvenation Machine

Dual Function Laser Skin Rejuvenation Machine

PL-687


Dual Function Laser Skin Rejuvenation Machine


Theory

Diode Laser

Semiconductor lasers are stacked with ultra-micro semiconductor laser chips. The basic treatment principle is biological effect. The 808nm laser emitted by this machine is easily absorbed by colored hair follicles without damaging the epidermal tissue. The energy emitted by the light is absorbed by hair and pigments in hair follicles. After being converted into heat, the temperature of the hair follicles is increased. When the temperature rises to a certain level, the hair follicles will be irreversibly damaged. After a period of time, the damaged hair follicles will be removed with the body's metabolism to achieve the purpose of permanent hair removal. Modern design, stable output, short exposure time, good effect of permanent hair removal, high safety.


Pico Laser

Using the light blasting effect, the high-intensity laser penetrate the epidermis and can reach the pigment clusters in the dermis layer. Because the energy has a short time of action and the energy is extremely high, the pigment clusters will quickly expand and explode after absorbing the high energy in an instant. After the particles are swallowed by macrophages, excreted, and the pigment gradually fades and disappears.


Application

Diode Laser

Long-lasting hair removal, better than IPL and E-light; effectively remove hair on different parts of the body, such as face, underarms, back, legs and bikini line, effectively removing hair of various depths.

Effectively remove hairs of different colors and textures, such as black, auburn and brown.

Permanent hair removal, suitable for a variety of skins.

Non-invasive treatment method, high safety. It is painless and non-invasive, and does not need a recovery period, and does not affect normal life and work.



Pico Laser

Remove chloasma, freckles, age spots, brown mole spots, acne marks and other endogenous pigments, wash eyebrows, tattoos, moles, birthmarks, remove Ota moles, etc.


Parts Introduction

PL687 英文详情5.jpg


Parameters

Input   Power

2000W

Screen

10.4inch   touch screen

Cooling   System

semiconductor,   water cooling

Voltage

110V/220V

Diode   Laser

Wavelength

808nm

Mode

Single   pulse and Contiuous pulse

Frequency

1-10Hz

Pulse   Width

10-200ms

Energy   Density

0-150J/cm2

Temperature

0-40   degree

Spot   Size

10mm*12mm

Pico   Laser

Wavelength

1064nm,   755nm, 532nm

Frequency

1-10Hz

Fruence

200-2000mj

Spot   Size

2-10mm(adjustable)


Q & A

Q: Is it painful during treatment? How long does it take?

A: The treatment process will be hot, and the place in which the pigment distribution will feel will more apparent. According to the treatment of the adaptation, the operator will recommend the use of local anesthetic ointments and cold blowers to reduce discomfort. General treatment time is approximately 5-15 minutes, subject to the size of the treatment area and skin problems.



Q: It has been treated many times. Will it leave scars if continue treatment?

A: The technology only needs to use generally laser doses to achieve effective treatment, tissue accepts lower dose stimulation, and the traumatic is relatively reduced, and it is not easy to generate wounds to cause scars.



Q: Is the pico laser washing tattoo good? Will it stay?

A: The current efficacy is particularly remarkable to use the pico laser to wash tattoo, which does not cause heat damage to the surrounding tissue, so it will not leave scars.



Q: Will there be anti-black problems with picosecond laser treatment?

A: Pico laser utilizes the focus energy probe of "honeycomes instant lens", can reduce tissue excessive stimulation, plus the instantaneous high energy of the pico laser (Q-switch) to crush the pigment particles, decrease heat injury, protect tissue melanocytes from excessive stimulation, which can significantly reduce the stimulation of normal cells and lengthy flush.

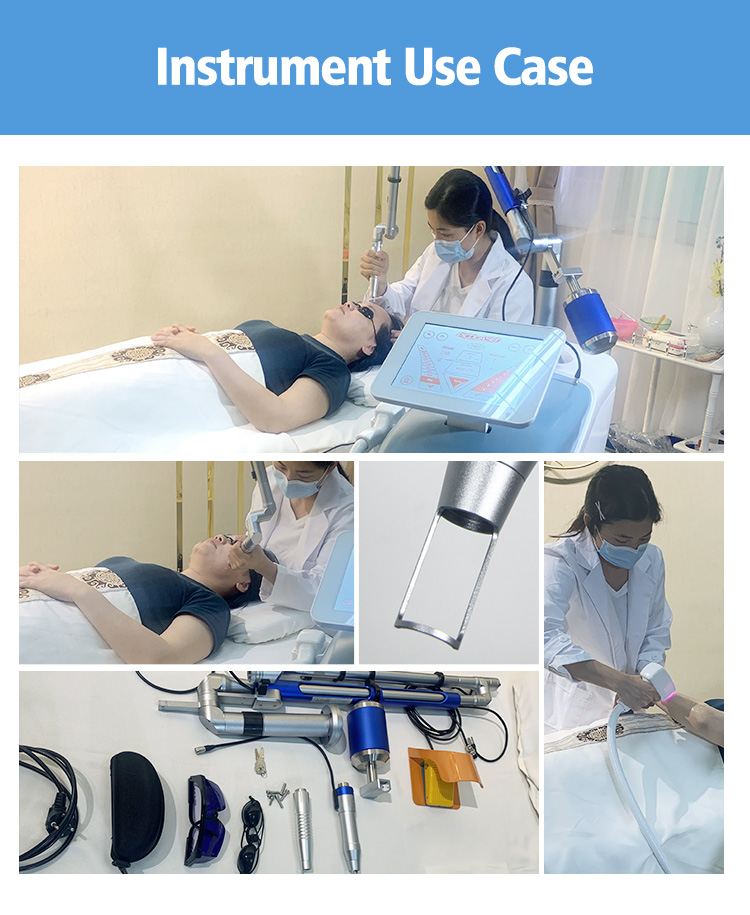

Operation

PL687 英文详情14.jpg
